Iyonix OEM Pack

Some images to assist in the assembly of the Iyonix OEM Pack supplied by Castle for "Iyonix downunder".

This is a standard ATX case with cabling as supplied. Please note word of caution re screw adjacent to Podule backplane socket. This has very fine clearance from circuit and can cause a short circuit and damage the board if a screw is placed there.

PDF (11Kb) of Board schematics as supplied by Castle

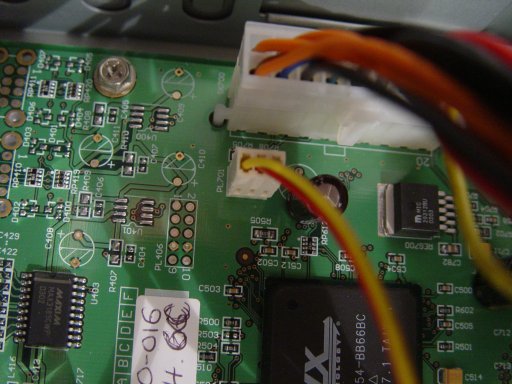

DSC08915.JPG - 9KbFan connection (PL701) from power supply if supplied.
Next to power cable plug.

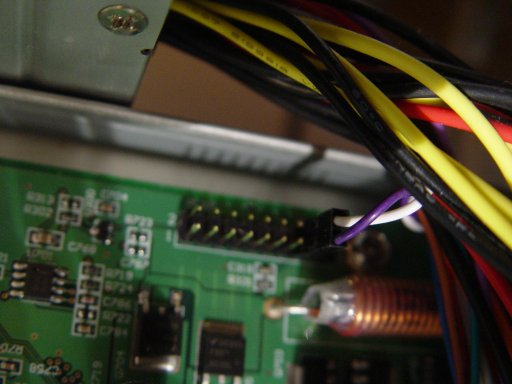

DSC08916.JPG - 8KbReset connection (PL301) between power and RAM slot.
Seventh set of pins from Power plug (not eighth as shown in pic).

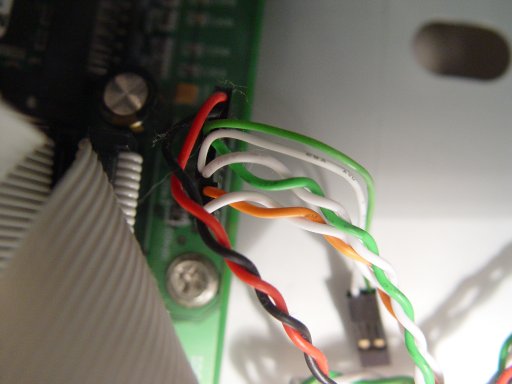

DSC08917.JPG - 6KbIDE LED, Power LED and Power on switch (PL405 and PL700)
Back edge of board next to IDE sockets.

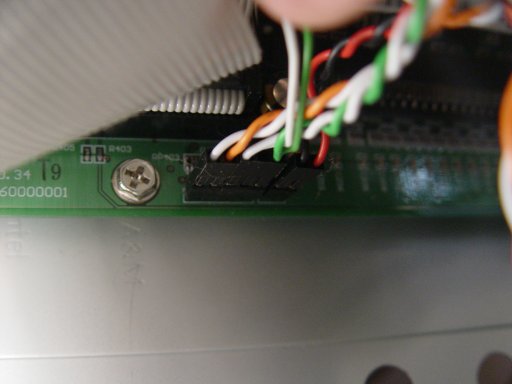

DSC08918.JPG - 5KbAnother view of IDE LED, Power LED and Power on switch (PL405 and PL700)
Back edge of board next to IDE sockets.

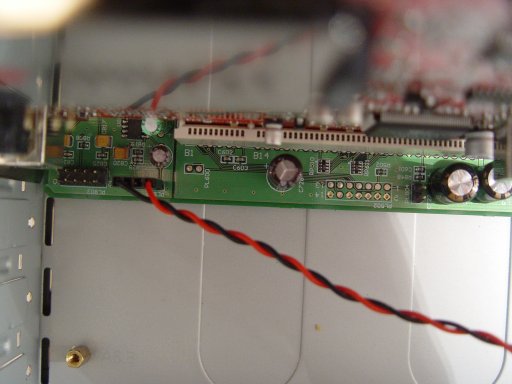

DSC08919.JPG - 6KbSound cable from inbuilt speaker to board (PL802)

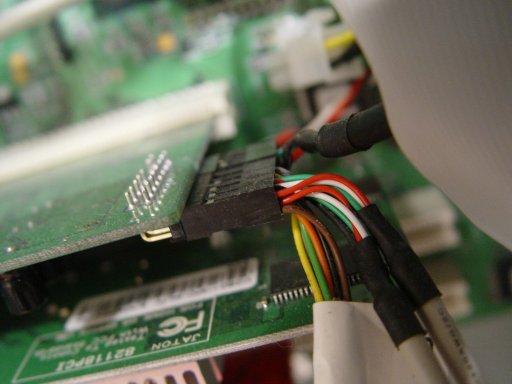

DSC08921.JPG - 7KbUSB cables from front sockets of case to USB card.
Note: apart from block of 10 at top also a shorter block at bottom for Mitsumi floppy/card reader.

Other audio connections go to PL805 near Mic and Audio Line sockets on backplane.

Sound cable from CD goes to PL800 on AUX1 adjacent to Mic socket on backplane.
